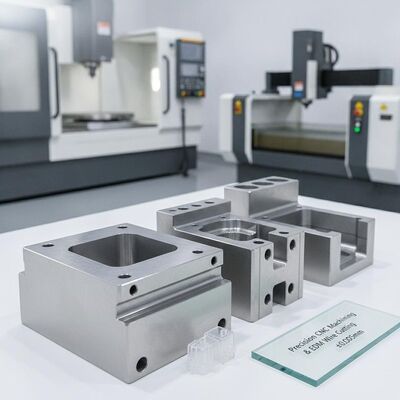

Precision CNC Machining and EDM Wire Cutting for Injection Mold Making with 5-Axis CNC and ±0.005mm Tolerance

  • Precision CNC Machining and EDM Wire Cutting for Injection Mold Making with 5-Axis CNC and ±0.005mm Tolerance
Place of Origin Xiamen, Fujian, China
Brand Name Creator
Certification ISO 9001:2015
Model Number KD-CNC-002
Minimum Order Quantity 100 Pieces
Price Negotiation
Packaging Details Export-grade carton with PE bag, palletized for container shipment
Delivery Time 25-35 working days for new mold, 7-15 days for production
Payment Terms T/T, L/C, PayPal, Western Union
Supply Ability 100000 Pieces per Month
Product Details
Equipment 5-Axis CNC + EDM Tolerance ±0.005mm
Inspection CMM Full Report
Highlight

5-Axis CNC Injection Mold Making

,

±0.005mm Tolerance Precision CNC Machining

,

CMM Full Report EDM Wire Cutting
Leave a Message
Product Description

Precision CNC Machining EDM Wire Cutting Injection Mold Making with 5-Axis Center ±0.005mm Tolerance

Xiamen Creator Technology Co., Ltd.'s advanced mold manufacturing facility features 5-axis CNC machining centers, EDM wire cutting, and EDM sinker machines achieving ±0.005mm precision for complex injection mold cores, cavities, and precision components. Our machining capabilities support molds for tight-tolerance medical, electronics, and automotive applications.

Key Features & Advantages

  • 5-axis CNC machining centers for complex 3D mold cavity machining
  • Wire EDM with ±0.002mm positioning accuracy for precision inserts
  • CNC EDM sinker for deep ribs, sharp corners, and fine detail features
  • High-speed CNC milling with 24,000 RPM spindle for fine finishing
  • In-house CMM inspection with full dimensional verification reports
  • Experienced CAM programmers optimizing toolpaths for efficiency

Technical Specifications

Equipment5-Axis CNC, Wire EDM, EDM Sinker, CNC Milling
CNC SpindleUp to 24,000 RPM
EDM Accuracy±0.002mm Positioning
Machining Tolerance±0.005mm
Max Workpiece800 x 600 x 400mm
SoftwareUG NX, PowerMill, Mastercam
InspectionCMM, 2D Projector, Surface Roughness Tester
Mold TypeInjection, Die Cast, Insert, Multi-Cavity

Manufacturing Excellence

Our climate-controlled mold manufacturing workshop houses a fleet of advanced CNC and EDM equipment imported from Japan and Taiwan. Our experienced CAM engineers program optimized toolpaths for efficiency and precision. Every mold component undergoes CMM inspection with full dimensional reports before assembly, ensuring first-time-right mold builds.

Frequently Asked Questions

Q: What CNC and EDM equipment do you use?

A: We operate 5-axis CNC machining centers, Mitsubishi wire EDM machines, and CNC EDM sinkers from top manufacturers, achieving ±0.005mm machining tolerance.

Q: Can you machine complex 3D mold cavities?

A: Yes. Our 5-axis CNC centers can machine complex 3D surfaces in a single setup, reducing errors and improving surface finish quality.

Q: What is the largest mold you can manufacture?

A: We can manufacture injection molds up to 800 x 600 x 400mm, with mold weight up to 5 tons. Larger sizes available through our partner network.

Q: Do you provide CMM inspection reports?

A: Yes. Every mold component is CMM inspected and we provide full dimensional verification reports with every mold delivery.
