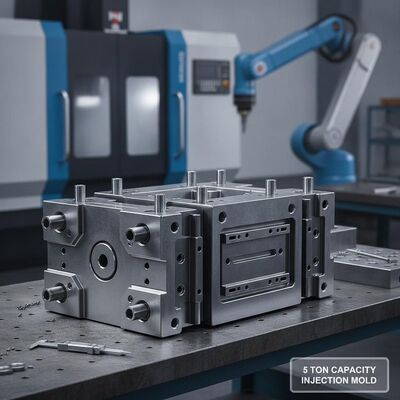

Large Format CNC Machined Mold Base with HASCO DME Standard Components for 5 Ton Capacity Injection Mold

  • Large Format CNC Machined Mold Base with HASCO DME Standard Components for 5 Ton Capacity Injection Mold
Place of Origin Xiamen, Fujian, China
Brand Name Creator
Certification ISO 9001:2015
Model Number KD-LARGE-001
Minimum Order Quantity 100 Pieces
Price Negotiation
Packaging Details Export-grade carton with PE bag, palletized for container shipment
Delivery Time 25-35 working days for new mold, 7-15 days for production
Payment Terms T/T, L/C, PayPal, Western Union
Supply Ability 100000 Pieces per Month
Product Details
Max Size 2000x1500x800mm Weight Up To 5 Tons
Standard HASCO/DME/LKM/MISUMI
Highlight

Large Format Injection Mold

,

HASCO DME Standard Components Mold Base

,

5 Ton Capacity CNC Machined Mold
Leave a Message
Product Description

Large Format CNC Machined Mold Base with HASCO DME Standard Components 5 Ton Capacity Injection Mold

Manufacturing large-format injection molds up to 5 tons, Xiamen Creator Technology Co., Ltd. combines CNC machined mold bases with HASCO and DME standard components for cost-efficient, maintainable, and globally serviceable large-part injection molds suitable for automotive, industrial equipment, and logistics container production.

Key Features & Advantages

  • Large format CNC machining capability: up to 2000 x 1500 x 800mm
  • Standard HASCO, DME, LKM, MISUMI interchangeable mold components
  • Stress-relieved mold base steel for long-term dimensional stability
  • Multiple hot runner drops for balanced filling of large parts
  • Hydraulic core pull and slide mechanisms for complex undercuts
  • Mold weight capacity up to 5 tons on 800-ton injection machines

Technical Specifications

Max Mold Size2000 x 1500 x 800mm
Max Mold Weight5,000 kg (5 tons)
Mold Base StandardHASCO, DME, LKM, MISUMI
Mold SteelP20, 718H, 2738, S50C
Runner SystemHot Runner Multiple Drops
MechanismsHydraulic Core Pull, Slides, Lifters
Injection MachineUp to 800 ton
ApplicationAutomotive, Industrial, Logistics Containers

Manufacturing Excellence

Our large-format mold manufacturing capability is supported by heavy-duty CNC machining centers and 10-ton overhead crane capacity. We use stress-relieved mold base steel and standard HASCO/DME components to ensure long-term dimensional stability and global serviceability. Each large mold undergoes comprehensive tryout and dimensional verification before shipment.

Frequently Asked Questions

Q: What is the largest mold you can manufacture?

A: We manufacture injection molds up to 2000 x 1500 x 800mm with weight up to 5 tons, suitable for large automotive, industrial, and container parts.

Q: Do you use standard mold components?

A: Yes. We use HASCO, DME, LKM, and MISUMI standard components for all molds, ensuring global availability of replacement parts.

Q: How do you ensure flatness on large molds?

A: We use stress-relieved steel and perform precision grinding on mold parting surfaces. Flatness is verified with CMM measurement before assembly.

Q: Can you add hydraulic core pulls?

A: Yes. We design and integrate hydraulic core pull and slide mechanisms for large parts with complex undercuts and side actions.
