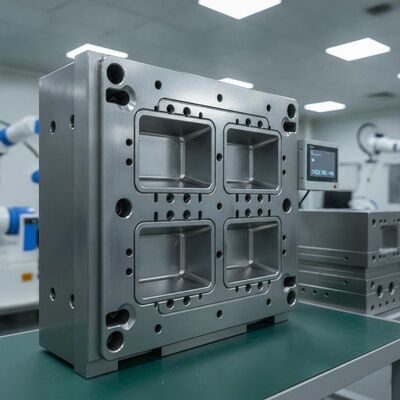

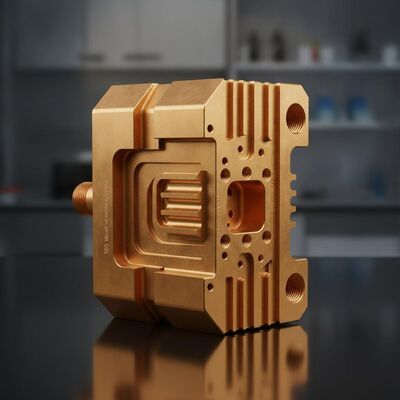

Hot Runner Injection Molding System with Valve Gate Technology for Reduced Cycle Time and Material Waste Elimination

KDET offers advanced hot runner injection molding systems that maximize production efficiency by eliminating cold runner waste and significantly reducing cycle times. Our hot runner molds integrate premium valve gate and hot tip technologies from leading manufacturers including HASCO, DME, YUDO, INCOE, and Synventive. With multi-zone PID temperature control achieving ±1°C accuracy across the manifold, our hot runner systems deliver consistent melt quality and gate performance throughout extended production runs. Since 2007, we have designed and built over 800 hot runner molds for demanding high-volume applications worldwide.

The hot runner system represents one of the most impactful investments in injection molding efficiency. By maintaining the plastic in a molten state within the manifold and delivering it directly to each cavity gate, hot runner molds eliminate the cost, handling, and regrind processing associated with cold runner systems. Our engineering team performs detailed ROI analysis for every project, demonstrating how hot runner technology typically pays for itself within 6-12 months through material savings alone.

• Valve Gate Precision Control: Our valve gate systems provide independent control of gate opening and closing for each cavity, enabling sequential filling, family mold optimization, and cosmetically superior gate vestige. Valve pin actuation can be hydraulic or pneumatic with response times under 50ms.
• Multi-Zone Temperature Control: Each manifold zone, nozzle, and sprue bushing is independently monitored and controlled via PID controllers maintaining ±1°C accuracy. Real-time temperature data logging ensures complete process traceability for quality documentation.
• Optimized Manifold Design: Naturally balanced or rheologically balanced manifold layouts ensure uniform melt delivery to every cavity regardless of geometric position. Flow channel geometry is optimized through Moldflow analysis for minimal pressure drop and shear stress.
• Material Waste Elimination: By eliminating the cold runner entirely, our hot runner systems save 15%-40% of total material consumption versus cold runner molds. For high-value engineering resins, this translates to significant cost savings per production run.
• Cycle Time Reduction: Without waiting for cold runner solidification, the cooling-limited portion of the cycle can be reduced by 15%-35%. Combined with optimized cooling channel design, total cycle time reductions of 20%-40% are routinely achieved.
• Brand Compatibility: We integrate hot runner systems from all major manufacturers — HASCO, DME, YUDO, INCOE, Synventive, Mold-Masters, Husky, and Ewikon — allowing you to standardize on your preferred brand for spare parts and service consistency.

• High-Volume Packaging: Thin-wall containers, caps, and closures where cycle time reduction directly translates to significantly higher daily output and lower per-unit costs.
• Automotive Interior & Exterior: Dashboard components, door trim panels, bumper brackets, and grille assemblies requiring cosmetic surface quality and no gate vestige marks from valve gate technology.
• Medical Consumables: Syringe barrels, petri dishes, and specimen containers where material purity and elimination of regrind material are critical for regulatory compliance.
• Consumer Electronics: Laptop housings, smartphone frames, and wearable device cases where thin-wall molding and cosmetic gate quality are essential for premium product appearance.
• Large Part Molding: Pallets, crates, furniture components, and appliance panels where cold runner weight would be uneconomical and cooling time dominates cycle time.

• Mold Flow & Runner Analysis: 2-3 working days — Hot runner simulation including shear rate analysis, balance study, and thermal mapping
• Mold & Manifold Design: 5-8 working days — Complete 3D design integrating hot runner manifold, cooling channels, and ejection system
• Mold Manufacturing: 20-30 working days — Precision machining, manifold integration, hot runner assembly, and wiring
• Hot Runner Commissioning: 1-2 working days — Temperature tuning, gate balance verification, and process window development
• Production: 7-15 working days — Full production with real-time temperature monitoring and gate performance tracking
