ISO 9001 Certified Mold Flow Analysis and Injection Molding Service with 2000+ Material Database and 2-5 Day Turnaround
| Place of Origin | Xiamen, China |
|---|---|
| Brand Name | KDET |
| Certification | ISO 9001:2015, IATF 16949 |
| Model Number | KD-MF-SM012 |
| Minimum Order Quantity | 500 pieces |
| Price | Based on complexity and volume |
| Packaging Details | Custom PE bags + export cartons + pallets |
| Delivery Time | 15-30 days mold; 7-15 days production |
| Payment Terms | T/T, L/C, PayPal |
| Supply Ability | 5,000,000 pieces per year |
Product Details
| Analysis Software | Autodesk Moldflow Adviser & Insight | Analysis Types | Fill, Pack, Cool, Warp, Fiber Orientation, 2-Shot |
|---|---|---|---|
| Turnaround | 2-5 Working Days | Material Database | 2,000+ Commercial Grades |
| Deliverables | Comprehensive Analysis Report With Recommendations | Certification | ISO 9001:2015 |
| Highlight | ISO 9001 Certified Mold Flow Analysis,2000+ Material Database Injection Molding Service,2-5 Day Turnaround Moldflow Simulation |
||
Product Description
KDET provides professional mold flow analysis and Moldflow simulation services that identify and resolve potential molding defects before a single chip of steel is cut. Using industry-leading Autodesk Moldflow software, our engineering team performs comprehensive filling, packing, cooling, and warpage analyses to optimize gate location, runner design, cooling circuit layout, and processing parameters. Since 2007, our mold flow analysis services have helped clients eliminate costly trial-and-error iterations, reducing mold development time by 20-30% and eliminating common defects including weld lines, air traps, sink marks, and excessive warpage.
Company Strength: 18 years of injection molding excellence since 2007 | ISO 9001:2015 & IATF 16949 certified | 40-50 skilled professionals | 80%-90% export to 30+ countries | 5,000,000+ pieces annual capacity | Full in-house tooling, molding, QC, and global logistics from Xiamen, China.
Product Solutions
KDET delivers world-class mold flow analysis solutions engineered to meet the demanding requirements of global OEM manufacturers. With 18 years of industry experience, ISO 9001:2015 and IATF 16949 certifications, and a fully integrated manufacturing facility, we provide comprehensive solutions from initial engineering consultation through tooling, production, quality assurance, and international logistics. Our structured project management methodology ensures transparent milestones, clear communication, and documented quality verification at every stage.
Key Features- Complete Filling Analysis: We simulate the complete mold filling process including melt front advancement, pressure distribution, shear rate analysis, and temperature profiles to identify potential short shots, hesitation, and unbalanced filling before mold manufacturing begins.
- Gate Location Optimization: Computational analysis of multiple gate location scenarios identifies the optimal gate position that minimizes injection pressure, eliminates weld lines in critical areas, and ensures balanced cavity filling for multi-cavity configurations.
- Warpage Prediction & Compensation: Our warpage analysis predicts post-molding dimensional deviation due to differential shrinkage, orientation effects, and cooling rate variation. We provide reverse-warpage compensation data that can be applied to the mold design for net-shape parts.
- Cooling Circuit Optimization: Transient cooling analysis evaluates cooling channel layout, diameter, and flow rate to achieve uniform mold surface temperature within ±3°C. Optimized cooling reduces cycle time by 15-25% while improving part dimensional stability.
- Material-Specific Database: We maintain an extensive material database with characterized rheological, thermal, and mechanical properties for over 2,000 commercial plastic grades, ensuring simulation accuracy that matches real-world molding behavior.
- Detailed Analysis Report: Every mold flow study includes a comprehensive report with fill time animations, pressure and temperature distribution plots, weld line and air trap locations, clamping force estimation, and specific recommendations for mold design and processing parameters.
| Parameter | Specification |
|---|---|
| Analysis Software | Autodesk Moldflow Adviser & Insight (latest version) |
| Analysis Types | Fill, Pack, Cool, Warp, Fiber Orientation, Insert Overmolding, 2-Shot Sequential |
| Material Database | 2,000+ characterized commercial grades including all major suppliers |
| Mesh Types | Dual Domain, 3D Tetrahedral, Midplane (for thin-wall parts) |
| Typical Turnaround | 2-5 working days for complete filling + cooling + warpage report |
| Output Deliverables | Fill analysis report, Weld line map, Air trap locations, Gate contribution plot, Pressure distribution, Temperature profile, Warpage prediction, Clamping force estimate, Processing window recommendation |
| Gate Optimization | Location, number, type (edge, sub, pin, valve, hot tip), and size optimization |
| Runner Balancing | Natural and rheological balancing for multi-cavity; hot runner manifold optimization |
| Design Integration | Results directly integrated into mold design in UG/NX and SolidWorks |
- New Product Development: Validate moldability of new part designs before committing to tooling investment. Identify and resolve gate location, wall thickness, and draft angle issues during the design phase when changes are inexpensive.
- Complex Geometry Parts: Components with thin walls, long flow paths, multiple gates, or complex geometries where filling behavior is difficult to predict from experience alone.

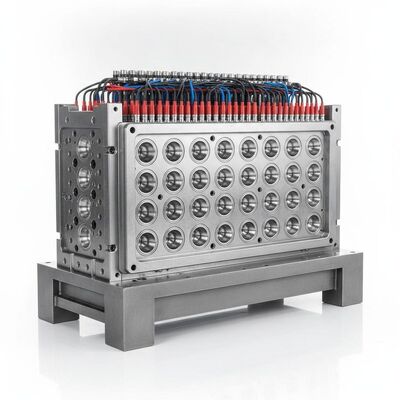

- High-Cavitation Molds: 16-96 cavity configurations where unbalanced filling between cavities can cause inconsistent part quality, excessive clamp force requirements, and premature mold wear.
- Precision & Optical Components: Parts with tight warpage tolerances where differential shrinkage prediction and reverse-warpage compensation are essential for achieving dimensional specifications.
- Material Change Validation: When switching from one material grade to another, mold flow analysis predicts how the new material will behave in the existing mold and identifies any required process or design adjustments.
Industry Success Case: A North American medical device company was experiencing 12% scrap rate on a PEEK surgical instrument handle due to sink marks at thick-to-thin transitions and warpage exceeding ±0.15mm specification. Our mold flow analysis identified inadequate packing pressure profile and non-uniform cooling as root causes. We recommended optimized processing parameters (higher mold temperature, revised packing profile) and cooling circuit modifications (added baffles at thick sections). The client implemented our recommendations and reduced scrap rate to 0.8%, achieving annual savings of $175,000 on a single part number.
Production Cycle
- Engineering Review & DFM: 2-5 working days — Design analysis, simulation, and feasibility report
- Mold Design & Approval: 3-7 working days — Full 3D mold design for client sign-off
- Mold Manufacturing: 15-30 working days — Precision machining, EDM, heat treatment, assembly
- Mold Trial & Samples: 2-3 working days — T0 samples with dimensional inspection report
- Production & QC: 7-15 working days — Full production with SPC and in-line inspection
- Packaging & Shipment: 2-5 working days — Professional export packaging with documentation
| Parameter | Details |
|---|---|
| Minimum Order Quantity | 500-5,000 pieces depending on part size and complexity |
| Mold Lead Time | 15-30 working days |
| Sample Lead Time | 3-5 days with existing molds; 5-15 days with new tooling |
| Production Lead Time | 7-15 working days after sample approval |
| Payment Terms | T/T 30% deposit, 70% before shipment; L/C at sight available |
| Shipping Methods | Sea freight (15-40 days), Air freight (3-7 days), Express (3-5 days) |
| Packaging | Custom PE bags + export cartons + fumigated pallets |
Q: At what stage of product development should mold flow analysis be performed?
A: Ideally, mold flow analysis should be performed during the product design phase (before mold design begins) to validate wall thickness, draft angles, and overall moldability. A second analysis during mold design optimizes gate location, runner system, and cooling layout. We recommend analysis as early as possible — the cost of design changes increases exponentially as you progress toward production.
Q: How accurate are mold flow simulation results compared to real molding?
A: With properly characterized material data and high-quality mesh models, fill pattern predictions are typically 90-95% accurate. Pressure predictions are generally within 10-15% of actual values. Warpage predictions have the highest variability (typically ±20%) because they depend on accurate material characterization and processing conditions. We validate predictions against trial results and continuously refine our simulation methodology.
Q: Can you perform mold flow analysis on parts designed by another company?
A: Yes, we provide mold flow analysis as a standalone service regardless of who designed the part or will build the mold. Simply provide your 3D CAD model (STP format preferred) along with the material specification, target production volume, and any known quality requirements. We deliver the complete analysis report for your use.
Q: Is mold flow analysis included in your mold manufacturing service?
A: Yes, mold flow analysis is included as a standard deliverable for all new mold projects. For complex molds (multi-cavity, hot runner, precision, or large parts), comprehensive fill+pack+cool+warp analysis is performed. For simpler molds, a focused gate and fill analysis is provided. The analysis report is part of your DFM documentation package.
