S136 Electronics Injection Molding For M8 M12 Male Connector With Golden Plated Pins
Product Details
| Mold Material | S136 | Base | KLM Tooling Base |
|---|---|---|---|
| Mold Life | 300,000-500,000 Shots | Cavity | Single Cavity |
| Product Material | Zytel | Cavity& Core Material | ASSAB P20, 718, S136, H13, 8407, NAK80 And More |
| Pole | 3, 4, 5 Poles | ||
| Highlight | electrical plastic moulding,injection molding services |
||
Product Description
S136 Electronics Injection Molding For M8 M12 Male Connector With Golden Plated Pins
Product Overview

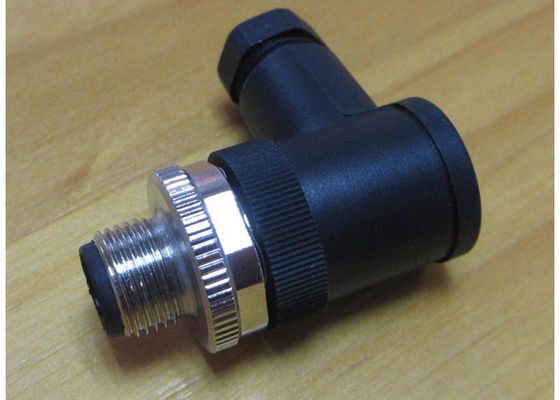

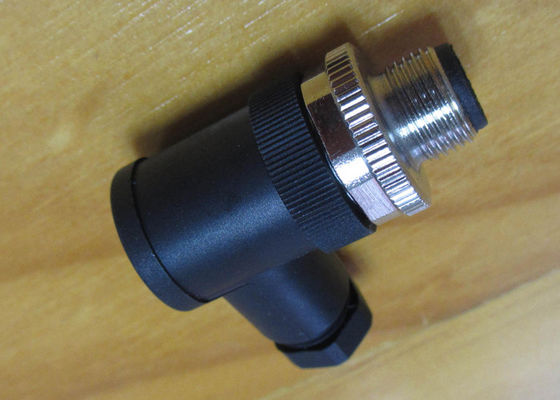

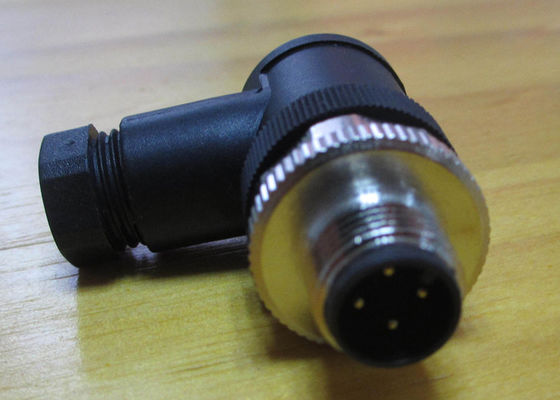

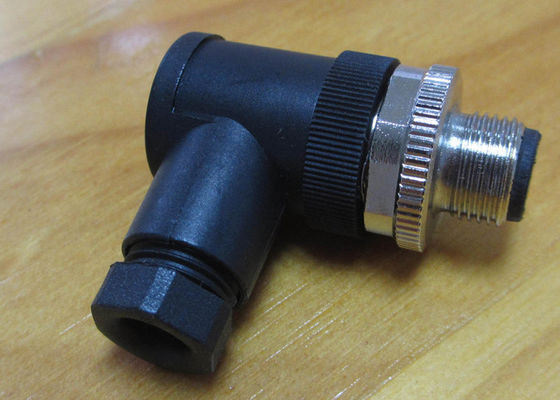

Electronic Injection Molding / M8, M12 Male 90° Connector / IP67 / Assembled / Black / Golden Plated Pins
Xiamen Creator provides professional plastic molding services for electronic components, serving various applications including structural components, boards, switch components, enclosures, and system supports.
Technical Specifications
| Parameter | Specification |
|---|---|
| Current | 10A Max |
| Voltage | 250V |
| Testing Voltage | 4KV |
- UL 94V0 Flame Retardant Level
- IP65 protective level
- Pin material: Copper with Silver or Golden plating
- Contact resistance: Less than 3mΩ
- Operating temperature range: -40°C to +125°C
Applications
Electronic components for automotive industries with IP67 protection rating. Our facility includes clean injection workshops and assembly lines, providing comprehensive product development services beyond just injection molding.
Design & Production Process
| Step | Process |
|---|---|
| 1 | Receive client's 2D/3D drawings (preferably .step format) |
| 2 | DFM analysis on 3D drawing, part line, core and cavity design |
| 3 | Communication with clients regarding DFM analysis |
| 4 | Tooling design and planning |
| 5 | Tooling manufacturing (CNC machining, EDM process, tooling assembly) |
| 6 | First trial on tooling, analysis after first trial, OTS checking |
| 7 | Tooling etching or final polishing after first samples approval |
| 8 | Golden samples trial and approval |
| 9 | Pilot production and mass production |
Competitive Advantages
- 13 Years Experience: Extensive OEM and ODM experience with integrated tooling room and clean injection workshop
- Advanced Equipment: All injection machines feature controlled system robots, CNC, 2D, 2.5D and injection machines
- Professional R&D: DFM and Mold Flow Analysis services
- Dual Shot Technology: Excellent dual shot injection molding capabilities
- Cost Efficiency: Quality-oriented approach with cost drivers analysis for customer savings
- Complete Services: Comprehensive design, prototyping, painting, printing and assembly services
