Custom Electronics Injection Molding For Assembled M8 M12 Female 90 Degree Connector
Product Details
| Mold Material | S136 | Base | KLM Tooling Base |
|---|---|---|---|
| Mold Life | 300,000-500,000 Shots | Cavity | Single Cavity |
| Feeding | Injection Molding | Cavity& Core Material | ASSAB P20, 718, S136, H13, 8407, NAK80 And More |
| Pole | 3, 4, 5 Poles | ||
| Highlight | electrical plastic moulding,electric injection molding |
||
Product Description

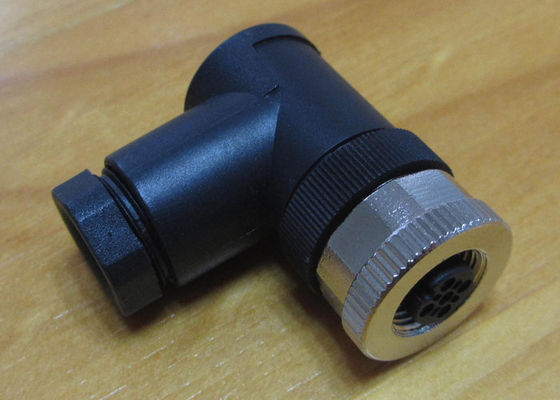

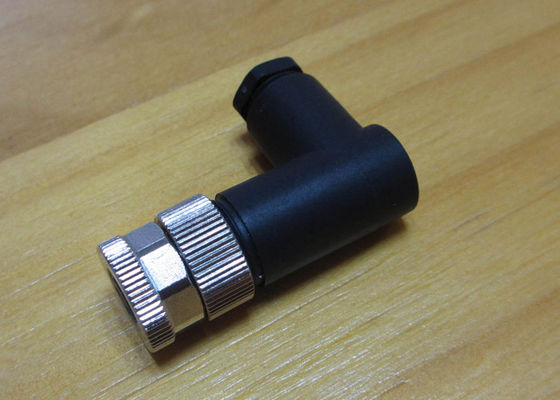

Custom Electronics Injection Molding For Assembled M8 M12 Female 90 Degree Connector
Product Overview
M8 M12 Female 90° Connector / IP67 / Electronics Injection Molding / Assembled
Electronic Molding Service
Xiamen Creator provides plastic molding for electronic components for various applications, including structural applications, boards, switch components, enclosures, and supports for finished systems.
Round Female Connector Specifications
| Parameter | Specification |
|---|---|
| Current | 10A Max |
| Voltage | 250 V |
| Testing Voltage | 4KV |
With UL 94V0 Flame Retardant Level and IP67 protective level. Pin material is Copper with Silver plated or Golden plated. Connectors achieve resistance less than 3mΩ, working temperature range from -40°C to +125°C.
We not only manufacture electronic connectors but also provide various electronic solutions including Thermal silicone pad die cutting material, adhesive tape material die cutting service, and more.
Applications
Electronic components for Automotive industries, IP67 rated applications. We maintain very clean injection work shops and assembly lines, providing clients with comprehensive injection molding services and full product development solutions.
Our Clean Assembly Line
We design and manufacture tooling for clients and produce customized injection parts. We export high-quality tooling at competitive prices and specialize in OEM product development and production.
Design and Production Process
| Step | Process |
|---|---|
| 1 | Receive client's 2D and 3D drawings (preferably in .step format) |
| 2 | DFM analysis on 3D drawing, part line, core and cavity design |
| 3 | Communication with clients regarding DFM analysis |
| 4 | Tooling design and tooling plan |
| 5 | Tooling manufacturing (CNC machining, EDM process, tooling assembly) |
| 6 | First trial on tooling, tooling analysis after first trial, OTS checking |
| 7 | Tooling etching or final polishing after first samples approval |
| 8 | Golden samples trial and samples approval |
| 9 | Pilot production and mass production |
Competitive Advantages
- 13 Years OEM and ODM experience in plastic injection molding service with complete tooling room and clean injection workshop
- All injection machines equipped with controlled system robots
- Advanced equipment and professional technology: CNC, 2D, 2.5D and injection machines
- Advanced R&D service and engineering expertise: DFM and Mold Flow Analysis
- Excellent dual shot injection molding technology
- Quality-oriented approach with cost drivers analysis to share cost reduction with customers
- Comprehensive services including design, prototyping, painting, printing and assembly with multiple assembly lines and clean assembly room for finished products
Frequently Asked Questions
Q1. Can I order the connector if the quantity is very small?
Yes, we accept small orders.
Q2. How can I place an order?
Please contact any of our sales personnel and provide the details of your requirements as clearly as possible.
Q3. How can I get a sample to check your quality?
After price confirmation, you can request samples to check our quality and will need to cover the express freight costs.
Q4. Can you do the design for us?
Yes. We have a professional team with rich experience in plastic products design and manufacturing. Share your ideas and we will help transform them into perfect products.
Q5. How long can I expect to get the sample and mass production?
For existing molds: samples ready in 3-7 days, mass production in 1-2 weeks. For new molds: 25-35 days for mold development, mass production in 1-4 weeks.
Q6. What are your terms of delivery?
We accept EXW, FOB, CFR, CIF, DDU, DDP, etc. You can choose the most convenient or cost-effective option for you.
