Professional Electronics Injection Molding For IP67 M8 / M12 Male Direct Connector
Product Details
| Mold Material | S136 | Base | KLM Tooling Base |
|---|---|---|---|
| Cavity | Single Cavity | Feeding | Injection Molding |
| Cavity& Core Material | ASSAB P20, 718, S136, H13, 8407, NAK80 And More | Pole | 3, 4, 5 Poles |
| Highlight | electrical plastic moulding,injection molding services |
||
Product Description

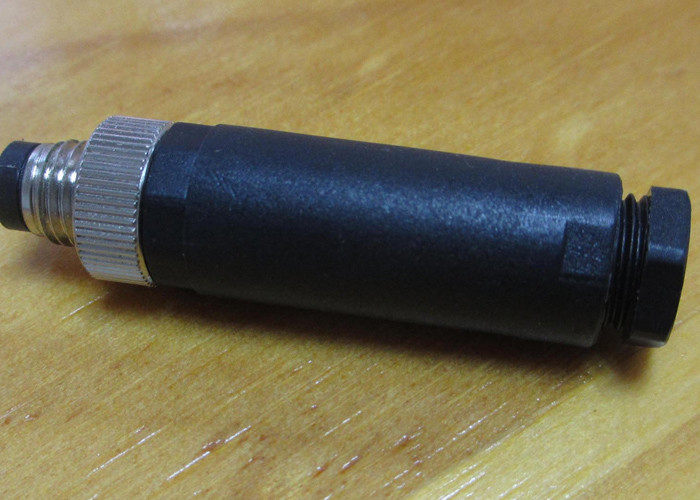

Professional Electronics Injection Molding For IP67 M8 / M12 Male Direct Connector
M8 M12 Round Male Connector / Electronic Molding Service / 94V0
Electronic Molding Service Overview
Xiamen Creator provides plastic molding for electronic components for various applications, including structural applications, boards, switch components, enclosures, and supports for finished systems. Our round connectors are primarily used in the automation industry.
Round Male Connector Specifications
| Current | 10A Max |
|---|---|
| Voltage | 250 V |
| Testing Voltage | 4KV |
With UL 94V0 flame retardant level and IP65 protective level, the pin material is copper with silver or gold plating. The connectors achieve resistance of less than 3mΩ and operate within a temperature range of -40°C to +125°C.
We not only manufacture electronic connectors but also provide various electronic solutions including thermal silicone pad die cutting materials and adhesive tape material die cutting services.
Round Electronics Injection Molding Applications
Electronic components for automation industries, IP67 protection. We maintain very clean injection workshops and assembly lines, providing clients with not only injection molding services but also full product development services.
Our clean assembly line:
We design and manufacture tooling for clients and also produce customized injection parts. We export high-quality tooling at competitive prices and specialize in OEM product development and production.
Design and Production Flow
| STEP | Process |
|---|---|
| 1 | Receive client's 2D and 3D drawings (preferably in .step file format) |
| 2 | DFM analysis on 3D drawing, part line, core and cavity design |
| 3 | Communication with clients regarding DFM analysis |
| 4 | Tooling design and tooling plan |
| 5 | Tooling manufacturing including CNC machining, EDM process, and tooling assembly |
| 6 | First trial on tooling, tooling analysis after first trial, OTS checking |
| 7 | Tooling etching or final polishing after first samples approval |
| 8 | Golden samples trial and samples approval |
| 9 | Pilot production and mass production |
Competitive Advantages
- 13 years of OEM and ODM experience in plastic injection molding service with integrated tooling room and clean injection workshop
- All injection machines equipped with controlled system robots
- Advanced equipment and professional technology: CNC, 2D, 2.5D and injection machines
- Advanced R&D service and engineering expertise: DFM and Mold Flow Analysis
- Excellent dual shot injection molding technology
- Quality-oriented approach with cost drivers analysis to share cost reduction with customers
- Comprehensive services including design, prototyping, painting, printing, and assembly with multiple assembly lines and clean assembly rooms for finished products
