Electronic Injection Molding Service , Single Cavity Injection Molding
Product Details
| Mold Material | S136 | Base | KLM Tooling Base |
|---|---|---|---|
| Mold Life | 300,000-500,000 Shots | Cavity | Single Cavity |
| Feeding | Injection Molding | Product Material | Zytel |
| Pole | 3, 4, 5 Poles | ||
| Highlight | electric injection molding,injection molding services |
||
Product Description
Electronic Injection Molding Service, Single Cavity Injection Molding

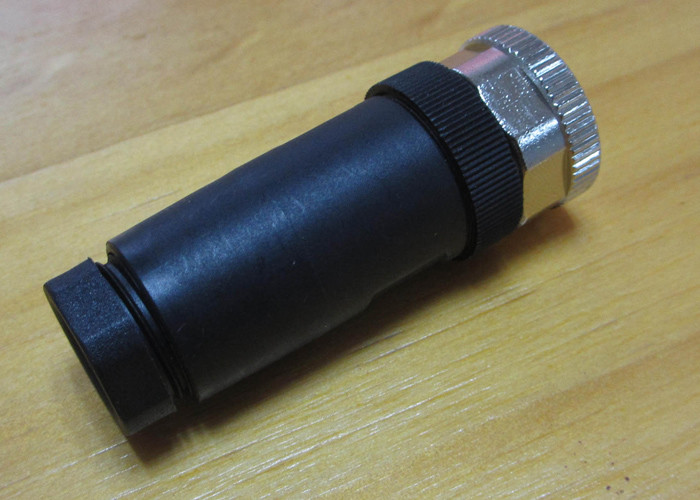

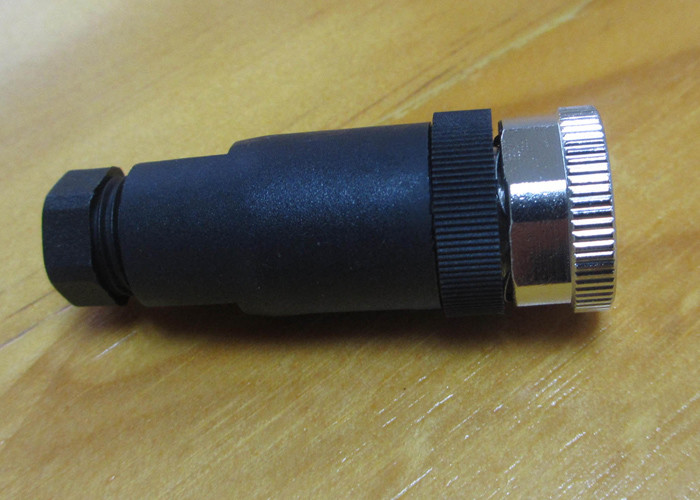

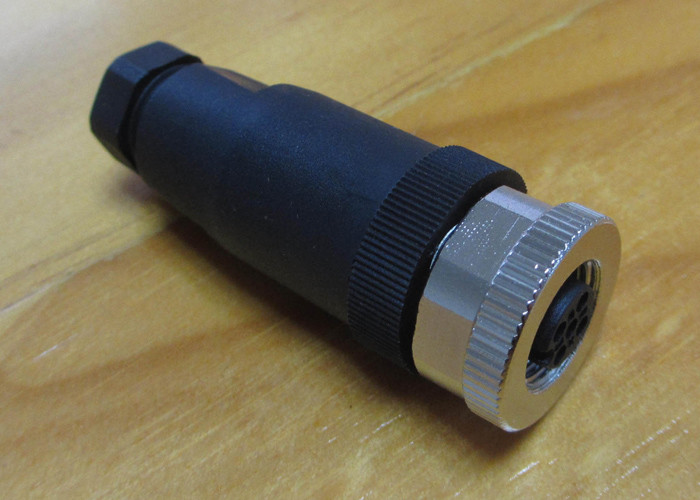

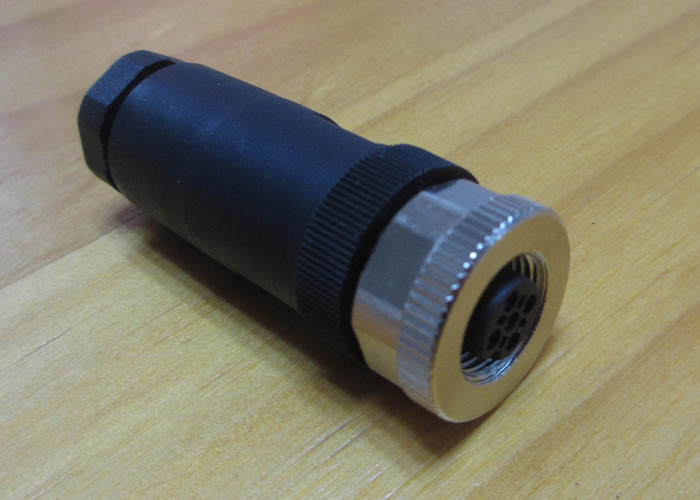

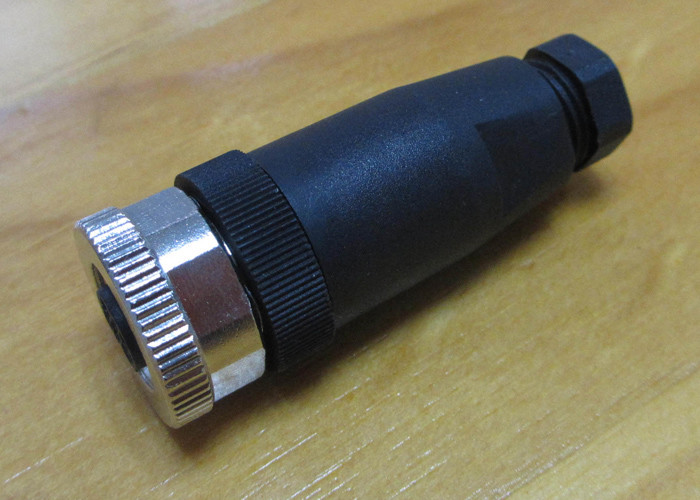

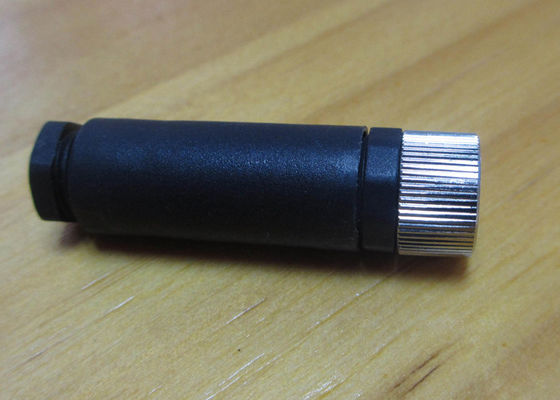

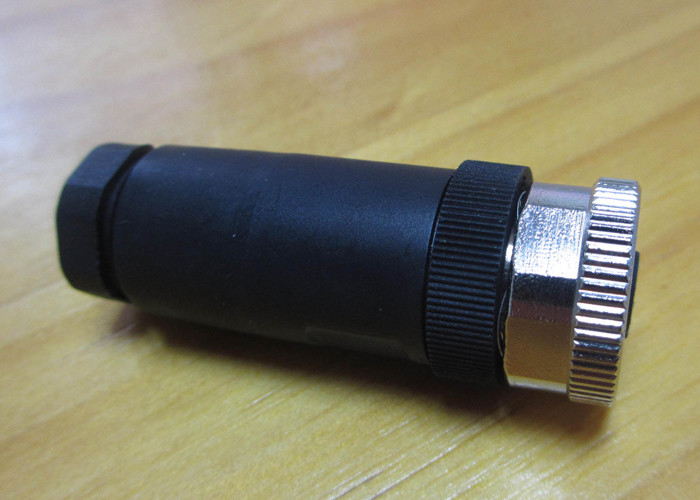

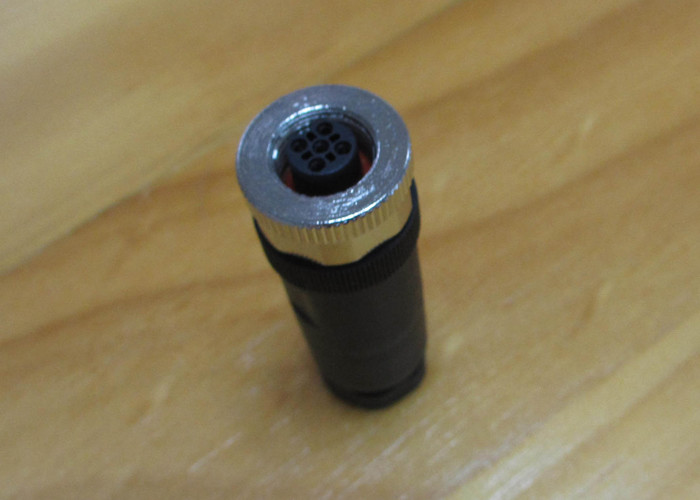

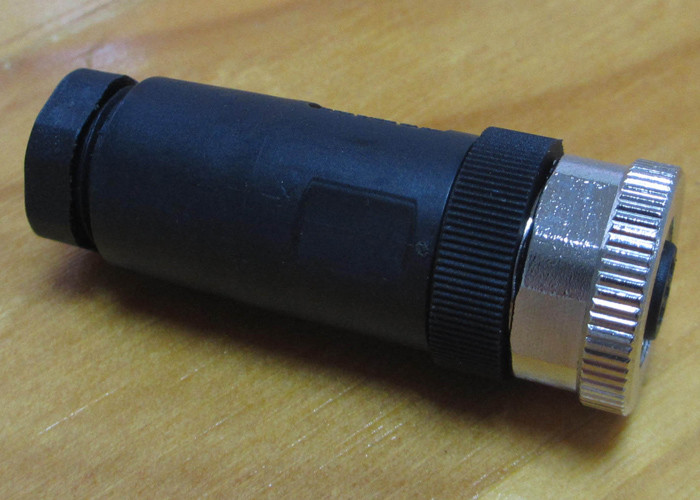

M8, M12 Female Direct Connector / IP67 / Electronics Injection Molding / Screw Connection
Electronic Molding Service Quick Check
Xiamen Creator provides plastic molding for electronic components for a variety of applications, such as structural applications, including boards and switch components, as well as enclosures and supports for finished systems.
Xiamen Creator provides plastic molding for electronic components for a variety of applications, such as structural applications, including boards and switch components, as well as enclosures and supports for finished systems.
Round Female Connector Electronics Specifications
| Current | 10A Max |
|---|---|
| Voltage | 250 V |
| Testing Voltage | 4KV |
With UL 94V0 Flame Retardant Level, and IP65 protective level, the Pin material is Copper with Silver plated or Golden plated. The connectors achieve resistance of less than 3mΩ, with a working temperature range from -40°C to +125°C.
We not only manufacture electronic connectors, but also provide various electronic solutions such as Thermal silicone pad die cutting material, adhesive tape material die cutting service, and more.
Round Electronics Injection Molding Applications
Electronic components for Automotive industries, IP67 rated applications. We maintain very clean injection work shops and assembly lines, providing clients with not only injection molding services but also full product development services.
We design and manufacture tooling for clients and also produce customized injection parts. We export high-quality tooling to clients at competitive prices. We specialize in OEM products development and production.
Design and Production Flow
| STEP | Process |
|---|---|
| 1 | First input → Receive client's 2D and 3D drawing, preferably in .step file format |
| 2 | DFM analysis on the 3D drawing, Part line, core and cavity design |
| 3 | Communication with clients regarding the DFM analysis |
| 4 | Tooling design and tooling plan |
| 5 | Tooling making including CNC machining and EDM process, tooling assembly |
| 6 | First trial on the tooling, Tooling analysis after first trial, OTS checking |
| 7 | Tooling etching or final polishing after first samples approval |
| 8 | Golden samples Trial and samples approval |
| 9 | Pilot production and mass production |
Competitive Advantages
- 13 Years OEM and ODM experience in plastic injection molding service. One-stop tooling room and clean injection workshop
- All injection machines with controlled system robots
- Advanced equipment and professional technology: CNC, 2D, 2.5D and injection machines
- Advanced R&D service and Best Engineers: DFM and Mold Flow Analysis
- Excellent Dual shot injection molding technology
- Quality and Price: Quality-oriented with cost drivers analysis to share cost reduction with customers
- Complete service of design, prototyping, painting, printing and assembly (multiple assembly lines and one clean assembly room for finished products)
Frequently Asked Questions
Q1. Can I order the connector if the quantity is very small?
Yes, we accept small orders.
Q2. How can I place an order?
Please contact any of our sales personnel for an order, and provide the details of your requirements as clearly as possible.
Q3. How can I get a sample to check your quality?
After price confirmation, you can request samples to check our quality and will need to cover the express freight.
Q4. Can you do the design for us?
Yes. We have a professional team with rich experience in plastic products design and manufacturing. Just let us know your ideas and we will help carry out your ideas into perfect products.
Q5. How long can I expect to get the sample and mass production?
For existing molds, samples will be ready in 3-7 days, mass production will take 1-2 weeks. For building a new mold, it takes 25-35 days and mass production takes 1-4 weeks.
Q6. What are your terms of delivery?
We accept EXW, FOB, CFR, CIF, DDU, DDP, etc. You can choose the most convenient or cost-effective option for you.
