Customized Electronics Injection Molding , 24 Pins Rectangle Female Connector Moulding Service

  • Customized Electronics Injection Molding , 24 Pins Rectangle Female Connector Moulding Service
  • Customized Electronics Injection Molding , 24 Pins Rectangle Female Connector Moulding Service
Place of Origin China
Brand Name Own
Certification ISO90001
Model Number CI-006
Minimum Order Quantity MOQ 500 set
Price Negotiation
Packaging Details Polybag and Master carton
Delivery Time 45-50days
Payment Terms T/T
Supply Ability 100000 Sets per month
Product Details
Base KLM Tooling Base Mold Life 300,000-500,000 Shots
Cavity Single Cavity Feeding Injection Molding
Product Material Zytel Cavity& Core Material ASSAB P20, 718, S136, H13, 8407, NAK80 And More
Pole 3, 4, 5 Poles
Highlight

electrical plastic moulding

,

injection molding services
Leave a Message
Product Description

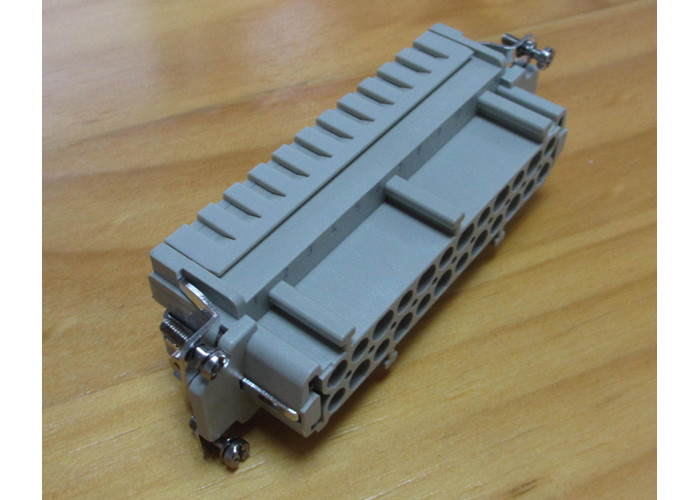

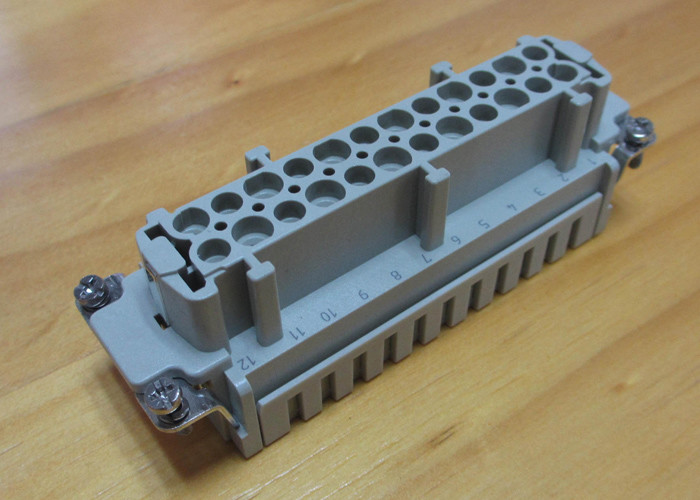

Customized Electronics Injection Molding, 24 Pins Rectangle Female Connector Moulding Service

Rectangle Female Connector Electronic Molding Service / With Copper Silver Plated Pin assembled

Electronic Molding Service Overview

Xiamen Creator provides plastic molding for electronic components for a variety of applications, including structural applications, boards, switch components, enclosures, and supports for finished systems.

Rectangle Female Connector Specifications
Current 10A Max
Voltage 250 V
Testing Voltage 4KV

With UL 94V0 File Retardant Level and IP65 protective level. The pin material is Copper with Silver plated or Golden plated. The connectors achieve resistance of less than 3mohms, with working temperature range from -40°C to +125°C.

Additional Electronic Solutions

We not only manufacture electronic connectors but also provide various electronic solutions including Thermal silicone pad die cutting material and adhesive tape material die cutting services.

Rectangle Electronics Injection Molding Applications

Electronic components for Automatic industries, IP67. We maintain very clean injection work shops and assembly lines, providing clients with not only injection molding service but full product development service.

Our Clean Assembly Line
Clean assembly line for injection molding services
Tooling and Production Services

We design and manufacture tooling for clients and produce customized injection parts. We export high-quality tooling at competitive prices and specialize in OEM products development and production.

Design and Production Flow
STEP Process
1 Receive client's 2D and 3D drawing (preferably in .step file format)
2 DFM analysis on the 3D drawing, part line, core and cavity design
3 Communication with clients regarding DFM analysis
4 Tooling design and tooling plan
5 Tooling making (CNC machining, EDM process, tooling assembly)
6 First trial on the tooling, tooling analysis after first trial, OTS checking
7 Tooling etching or final polishing after first samples approval
8 Golden samples trial and samples approval
9 Pilot production and mass production
Competitive Advantages
  • 13 Years OEM and ODM experience in plastic injection molding service with complete tooling room and clean injection workshop
  • All injection machines with controlled system robots
  • Advanced equipment and professional technology: CNC, 2D, 2.5D and injection machines
  • Advanced R&D service and experienced engineers: DFM and Mold Flow Analysis
  • Excellent dual shot injection molding technology
  • Quality-oriented approach with cost drivers analysis to share cost reduction with customers
  • Comprehensive services including design, prototyping, painting, printing and assembly with multiple assembly lines and clean assembly room for finished products
Frequently Asked Questions
Q1. Can I order the connector if the quantity is very small?
Yes, we accept small orders.
Q2. How can I place an order?
Please contact any of our sales personnel and provide the details of your requirements as clearly as possible.
Q3. How can I get a sample to check your quality?
After price confirmation, you can request samples to check our quality and will need to cover the express freight.
Q4. Can you do the design for us?
Yes. We have a professional team with rich experience in plastic products design and manufacturing. Share your ideas and we will help transform them into perfect products.
Q5. How long can I expect to get the sample and mass production?
For existing molds: samples ready in 3-7 days, mass production in 1-2 weeks. For new molds: 25-35 days for mold building, mass production in 1-4 weeks.
Q6. What are your terms of delivery?
We accept EXW, FOB, CFR, CIF, DDU, DDP, etc. You can choose the most convenient or cost-effective option for you.
